ZigZag FTH

List price: $625.00

  • Code:

    TLS796

  • Dimensions:

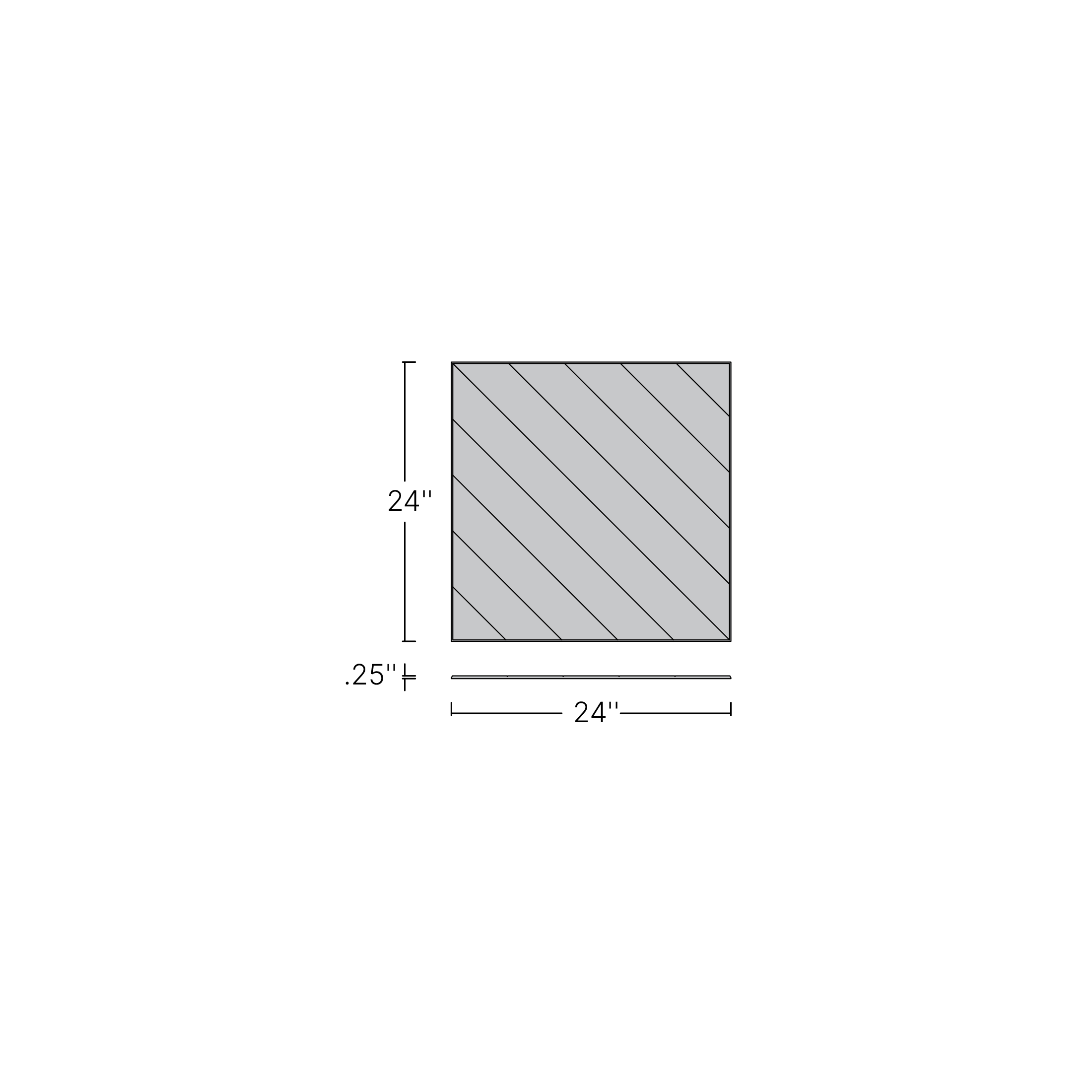

    24" W × 24" H THK 0.25"

  • Description:

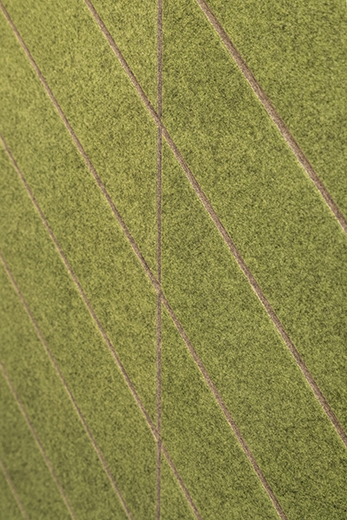

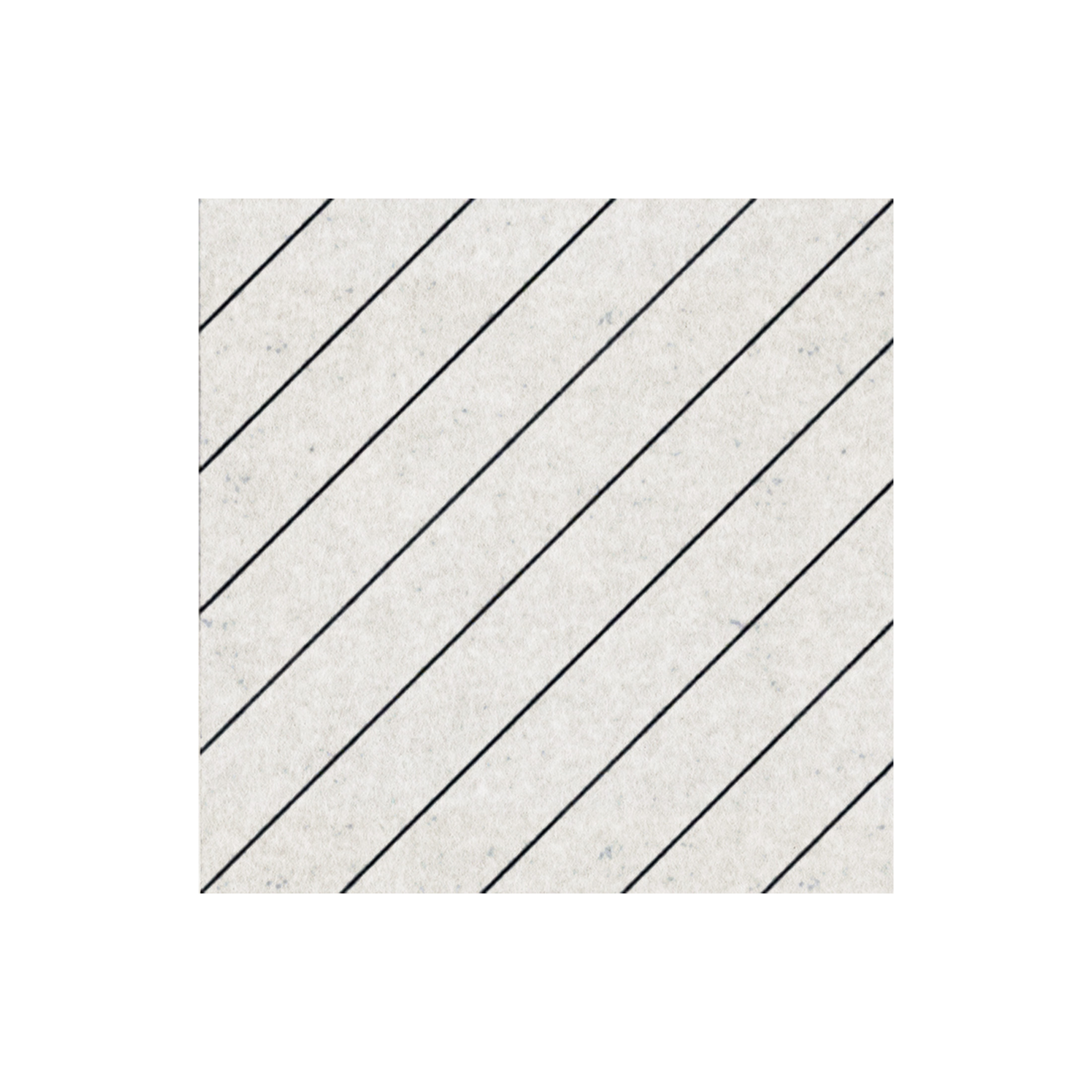

    Sound-absorbing rigid felt panel with endgraved zig zag pattern,Engraved zig zag pattern and exposed felt edge is a "through body" color, Mandarin is a surface color facing the Natural felt substrate, Mandarin felt edge and engraved zig zag pattern is a Natural felt substrate, Set includes 8 Pcs

Color ( 8 pieces in a set )

Natural

Color

Substrate

Natural
*If a Mandarin color is selected a natural substrate is required

Edge Type

-

Color Combo

One Tone Combination

Color ( 8 pieces in a set )

-

Substrate

Natural

Line Weight

-

Edge Type

-

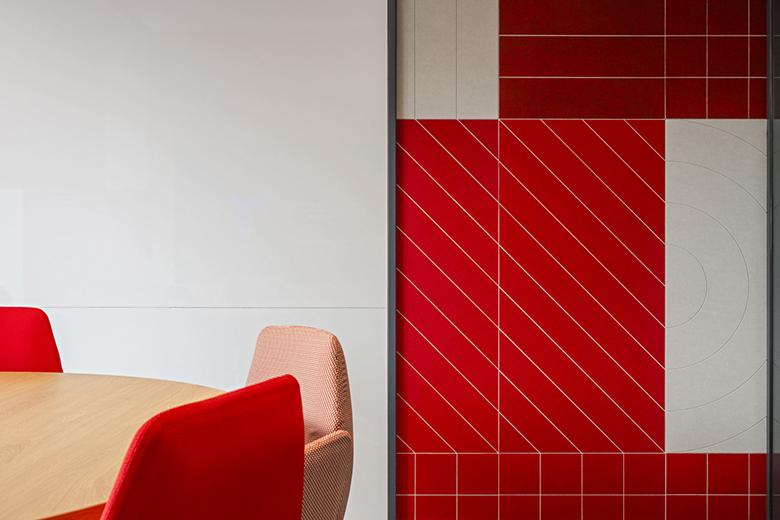

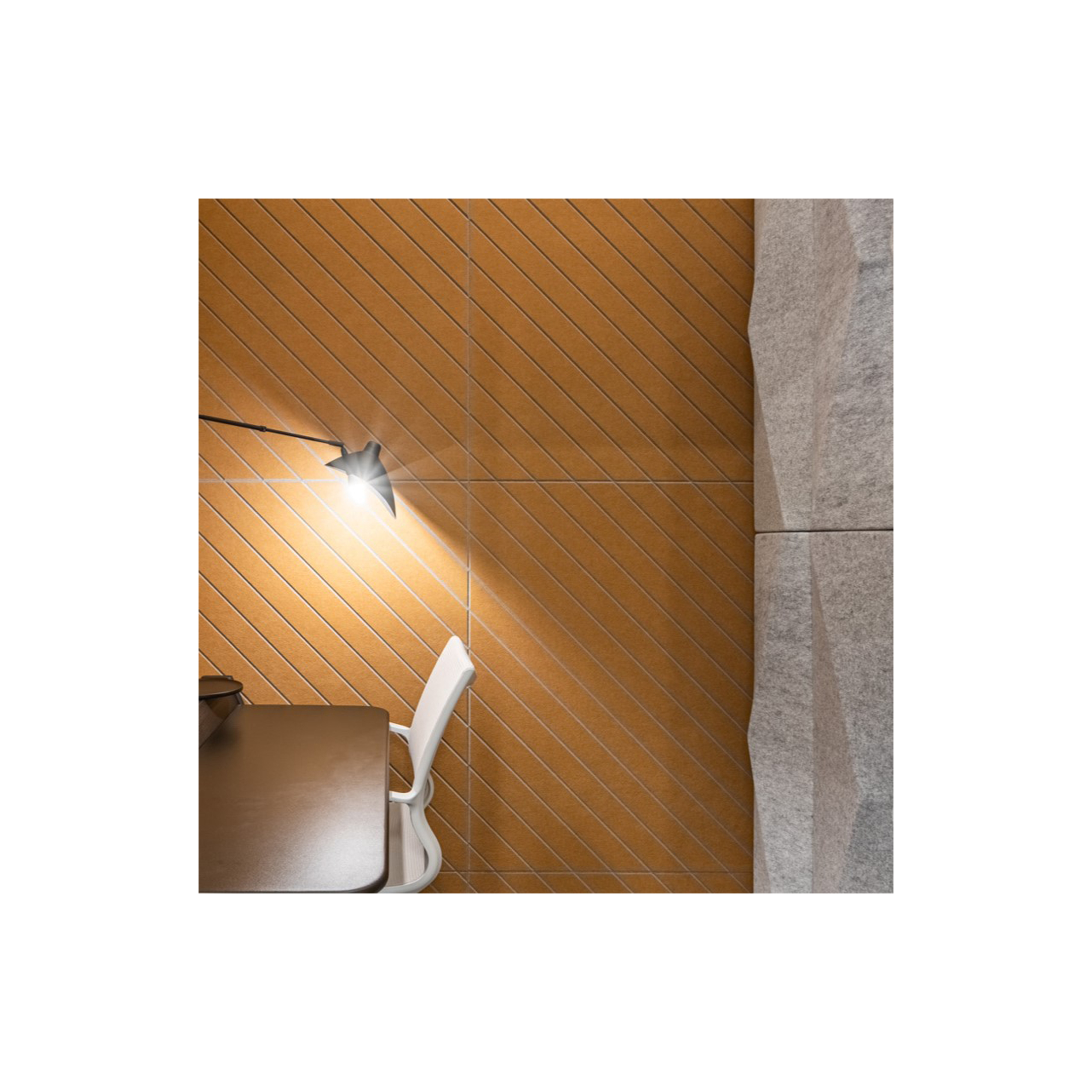

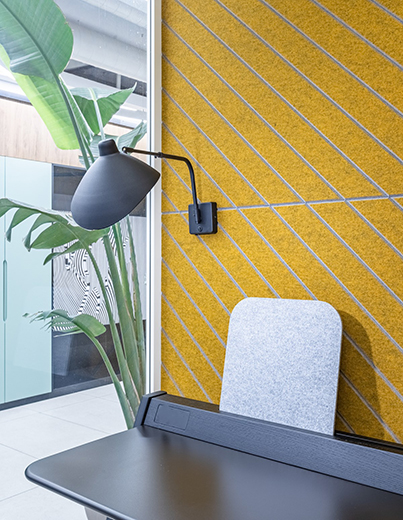

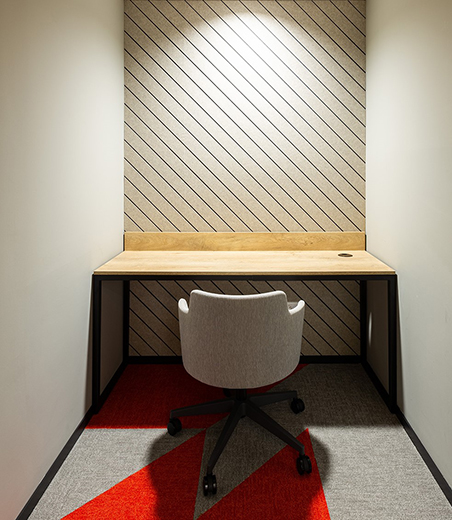

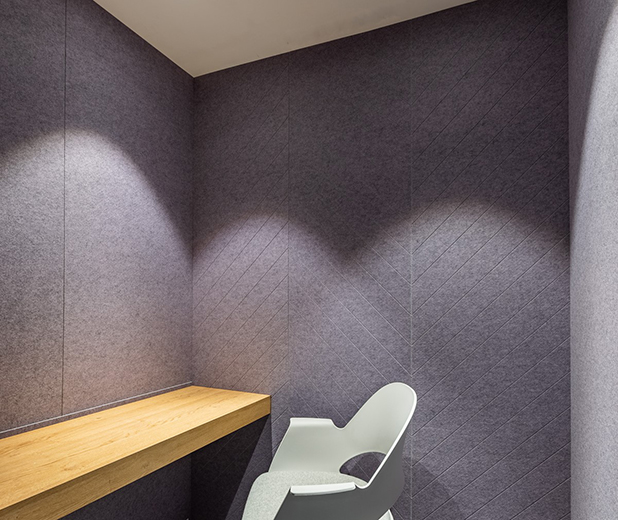

Gallery

ZigZag
ZigZag
ZigZag
ZigZag
ZigZag
ZigZag
ZigZag
ZigZag
ZigZag
ZigZag
ZigZag
ZigZag
ZigZag
ZigZag
ZigZag
ZigZag
ZigZag
ZigZag
ZigZag
ZigZag

Resources

General Notes

Vertical Integration

One strategy to streamline operations for our manufacturing partner involves direct ownership of various stages of the production process rather than relying on external contractors or suppliers.

Acoustic Performance

High Acoustic performance (ISO 11654 and EN 354, ASTM C423) up to class A. The specific NRC for individual products is found in the product information.

Pet Felt

Pet Felt is crafted from 100% polyester, with 50% sourced from recycled plastic bottles. It is produced using nonwoven technology and undergoes a chemical-free production process. With a moisture content not exceeding 0.02%, Pet Felt boasts an antibacterial, partially antiallergic structure and naturally repels water due to its hydrophobic properties.

Natural Felt Color

The natural felt panel colors feature a “through body” color, ensuring that the exposed felt edges match seamlessly. These colors have distinct front and back sides determined by the direction of the fibers.

Mandarin Felt Color

The Mandarin color collection comprises dyed felt colors laminated onto a natural felt substrate. The exposed felt edge in this collection always retains the selected natural color substrate.

Substrate

Natural felt serves as the substrate for the Mandarin colors, and when specifying a Mandarin color, the natural substrate color must be selected.

Color Combinations

Single, two, and three-tone color combinations are available for specific products.

Color Irregularities

PET Felt often exhibits a heathered effect with multiple tones present. Please note that product color serves as an indication only, as consistency of color from batch to batch cannot be guaranteed. Slight variations in color and thickness may occur between dye lots or production runs. It’s essential to anticipate color variations when utilizing this sustainable material.

Temperatures

Significant variations in temperature and humidity can cause the fibers to expand or contract, affecting suspended and hanging panels.

Thickness Tolerance

±1/16 in (2 mm)

Bevel Type

The V-Plate panel is available with either a 30˚ angle (Type 1) or a 45˚ angle (Type 2) carved edge.

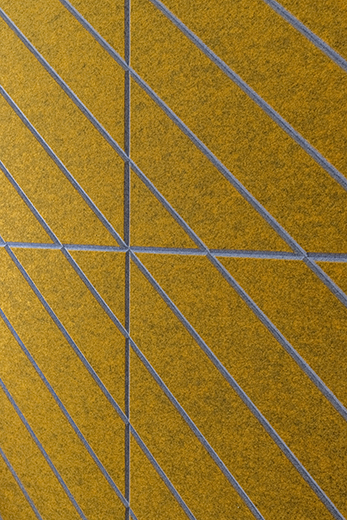

Engraved Pattern

The V-Plate panel is available with either a 30˚ angle (Type 1) or a 45˚ angle (Type 2) carved edge.

Custom

We offer in-house production capabilities, enabling customization for specific collections. These capabilities allow us to provide a wide range of custom solutions, from customizing standard products to offering complete custom services.

Certificates

ACOUSTIC ASTM C423 (US Standard)
*ABRASION EN ISO 12947 / Result Performance ‘A’ DECLARE CDPH Standard method v1.2-201 / Result ‘10 + Years’
*MOISTURE RESISTANCE EN 13964 2014 / Result ‘Class B’
CLASSIFICATION OF REACTION TO FIREEN 13501 / Result ‘B-s1,d0’ EN ISO/IEC 17025 / Result ‘Class A’
THE QUALITY MANAGEMENT SYSTEM ISO 9001:2015
THE ENVIRONMENTAL MANAGEMENT SYSTEM ISO 14001:2015 UV EXPOSURE TESTING ISO 4892-32016 / Result ‘5-4’
EKOTEKS ISO 1833 / Result ‘100% Polyester’ Fibre Composition
ISO 9237:1995 / Result ‘387.9 1/m²’/sn’ Air Permeability ISO 4920:2012 / Result ‘ISO 0’ Spray Test
ISO 14419:2010 / Result ‘0 D’ Oil Repellence
ISO 105 B02:1994 / Result ‘6+’Light Fastness Grade
SNV 195 651:1968 / Result ‘1’ Sensoria Odour
ISO 14184-1:2011 Low VOC / Result ‘N.D’ Formaldehyde-Free ISO 20743:2013 / Result ‘Strong Efficacy’
99.9% Antibacterial structure
Superior thermal insulating 0,040 W/MK
MAS CERTIFIED GREEN CDPH Standard Method v1.2

Lead Time

Once we receive the 50% deposit and all signed documents, our standard lead time is 12 to 14 weeks.

Warranty

Refer to our warranty information here.

Terms & Conditions

Refer to our Terms & Conditions information here.

Trade Discount

Trade or volume discounts are available on request where applicable.

Sea Freight

Sea freight is charged based on cubic volume, calculated at 9% of the Total List Price. Please note that an order will not be accepted unless it includes the freight charge.

Order Placement

Orders will be placed once we receive the 50% deposit, signed documents, and technical drawings.

Payment

Our payment terms require a 50% non-refundable deposit upon placing the order for the product, freight, delivery, and installation (if provided by MCONTRAST). The remaining 50% of the project is due before delivery to the client’s site or warehouse.

Manufacturer

Feltouch

Country Of Origin

Turkey
